FR201 THRU FR207 Fast Recovery Rectifier Diode Weight 0.012 Ounce 0.33 Grams

Name: FR201 THRU FR207 Fast Recovery Rectifier Diode Weight 0012 Ounce 033 Grams
Brand: Hua Xuan Yang
Price: 1 USD

Place of Origin : ShenZhen China

Brand Name : Hua Xuan Yang

Certification : RoHS、SGS

MOQ : 1000-2000 PCS

Price : Negotiated

Packaging Details : Boxed

Delivery Time : 1 - 2 Weeks

Payment Terms : L/C T/T Western Union

Supply Ability : 18,000,000PCS / Per Day

Model Number : FR201 THRU FR207

Type : SWITCHING DIODESOD

Mounting Position : Any

Weight : 0.012 ounce, 0.33 grams

Polarity : Color band denotes cathode end

Product ID : MMBD4148A/SE/CC/CA

Tj : 150℃

Contact Now

FR201 THRU FR207 FAST RECOVERY RECTIFIERS Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Amperes

FEATURE

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Fast switching for high efficiency

Low reverse leakage

High forward surge current capability

High temperature soldering guaranteed:

250 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-41 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.012 ounce, 0.33 grams

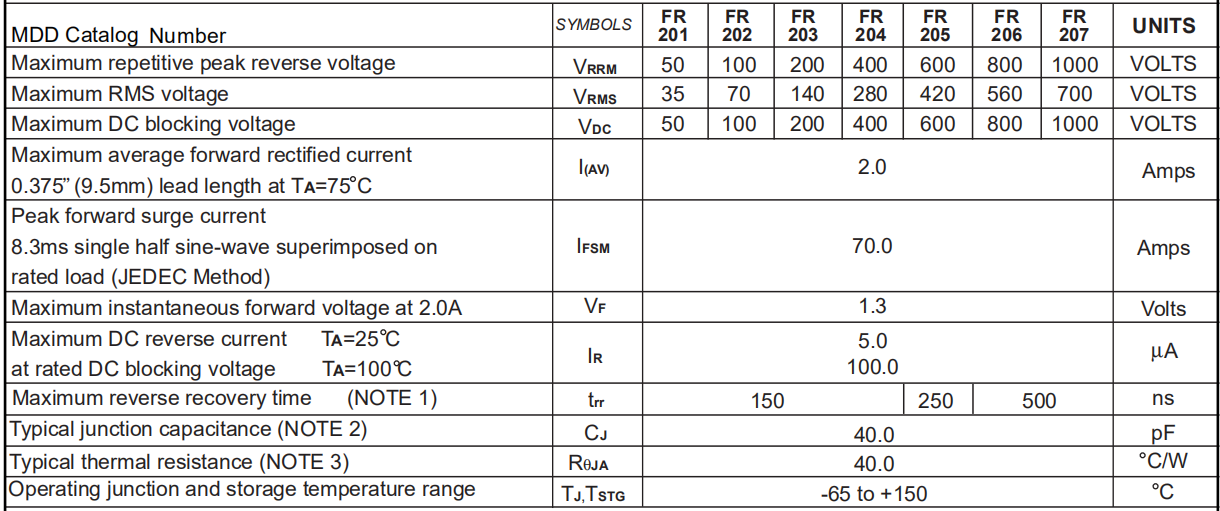

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

FR201 THRU FR207 Fast Recovery Rectifier Diode Weight 0.012 Ounce 0.33 Grams

Note:

1. Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounte

RATINGS AND CHARACTERISTIC CURVES 1N4942 THRU 1N4948
